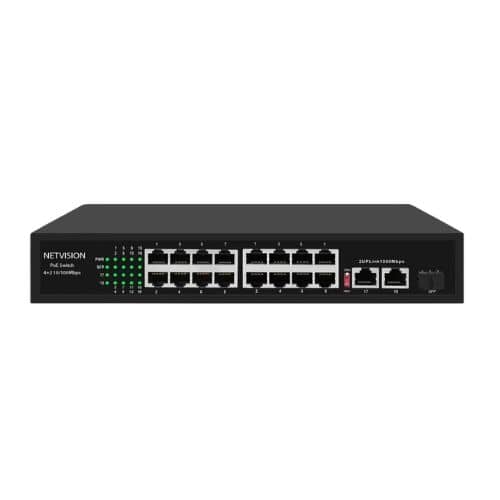

Features of the Netvision NV-48163QG 10/100M 19-Port 2Port Uplink 1 SFP Full Gigabit Smart PoE Switch
- 16+2 UPlink+1 SFP
- Each Port:15/30W
- Total: 300W
- AC input 110-240
- Full Gigabit
Download DataSheet = NV-48163QG
Description
| Model | NV-48163QG |
| Interface Characteristics | |
| Fixed Port |
16 x 10/100Base-TX PoE ports (Data/Power)
|
|
2 x 10/100/1000Base-T uplink RJ45 ports (Data)
|
|
|
1 x 1000Base-X uplink SFP fiber port (Data)
|
|
| Ethernet Port |
Ports 1-16/1-24 can support 10/100Base-T(X) and 100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaptation
|
| Twisted Pair Transmission | |
| 10BASE-TX | Cat5 or later UTP (≤250 meters) |
| 100BASE-TX | Cat5 or later UTP (≤100 meters) |
| 1000BASE-T | Cat5e or later UTP (≤100 meters) |
| Optical Fiber Port |
Gigabit optical fiber port (optical module optional: single-mode/multi-mode, single fiber/dual fiber, LC/SC)
|
| Optical Cable/Distance |
Multi-mode: 850nm/0-500m; Single-mode: 1310nm/0-40km, 1550nm/0-120km
|
| Functional Switch |
Ports 9-16/17-24 can support 10M/250 meters transmission when the functional switch is on 250m
|
| Chip Parameter | |
| Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
|
| Forwarding Mode |
Store and Forward (Full Wire Speed)
|
| Switching Capacity | 9.2Gbps (Non-blocking) |
| Forwarding Rate | @64 byte: 6.84 Mpps |
| MAC | 2K |
| Buffer Memory | 2.75M |
| Jumbo Frame | 9216B |
| LED Indicator |
Power: PWR (Green), Network: Link (Green), PoE: PoE (Red), Fiber port: L/A (Green), Functional switch: 100m/250m (Green)
|
| PoE & Power Supply | |
| PoE Port | Ports 1-16 |
| Power Supply Pin | 4/5(+) 7/8(-) |
| Max Single Port PoE Power | 18W, non-standard PoE+ |
| Total Power / Input Voltage | 250W / (AC 100-240V) |
| Power Consumption | Standby <5W, Full load <300W |
| Power Supply |
Built-in power supply, AC 100~240V 50-60Hz, 4.1A
|
| Physical Parameter | |
| Operating Temp/Humidity |
-20°C~+55°C, 5%~90% RH Non-condensing
|
| Storage Temp/Humidity |
-40°C~+80°C, 5%~95% RH Non-condensing
|
| Dimension (LWH) | 350 x 215 x 44 mm |
| Net/Gross Weight | 1.9 kg / 2.45 kg |
| Installation | Desktop, Rack mounted |
| Certification & Warranty | |
| Lightning Protection |
4KV 8/20us, Protection level: IP30
|
| Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
|
| Warranty | 1 year, lifelong maintenance |
