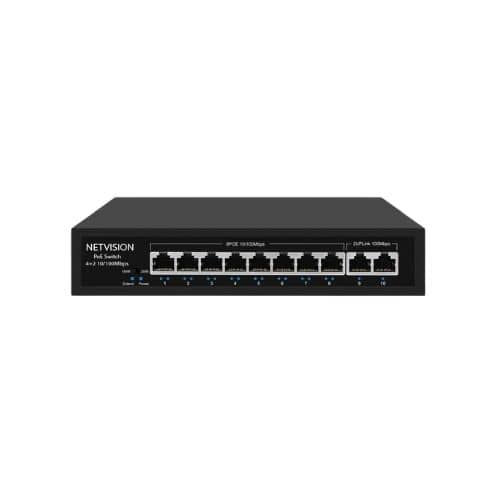

Features of the Netvision NV-5810PG 10/100M 10-Port Full Gigabit Smart PoE Switch
- Port: 8+2 Uplink
- Port Power: 15/30W
- Overall, Power: 120W
- Input & output voltage: input 110-240V
- Power network port：100Mbps
- UP LINK port：100Mbps
Download DataSheet =NV-5810PG
Description
| Model | NV-5810PG |
| Interface Characteristics | |
| Fixed Port |
8 x 10/100/1000Base-T PoE ports (Data/Power)
|
|
2 x 10/100/1000Base-T uplink RJ45 ports (Data)
|
|
| Ethernet Port |
Ports 1-6/1-10 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaptation
|
| Twisted Pair Transmission | |
| 10BASE-T | Cat3,4,5 UTP (≤100 meters) |
| 100BASE-TX | Cat5 or later UTP (≤100 meters) |
| 1000BASE-T | Cat5e or later UTP (≤100 meters) |
| Chip Parameter | |
| Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x
|
| Forwarding Mode |
Store and Forward (Full Wire Speed)
|
| Switching Capacity | 20Gbps (non-blocking) |
| Forwarding Rate | @64 byte: 14.88 Mpps |
| MAC | 8K |
| Buffer Memory | 2M |
| Jumbo Frame | 9.2k |
| LED Indicator |
Power: PWR (Green), Network: Link (Green), PoE: PoE (Green)
|
| PoE & Power Supply | |
| PoE Port | Ports 1-8 |
| Power Supply Pin | 1/2(+) 3/6(-) |
| Max Power Per Port | 30W, PoE+ |
| Total Power / Input Voltage | 120W / (AC 100-240V) |
| Power Consumption | Standby <6W, Full load <120W |
| Power Supply |
Built-in power supply, AC 120~240V 50-60Hz, 2.2A
|
| Physical Parameter | |
| Operating Temp/Humidity |
-20°C~+55°C, 5%~90% RH Non-condensing
|
| Storage Temp/Humidity |
-40°C~+75°C, 5%~95% RH Non-condensing
|
| Dimension (LWH) | 195 x 130 x 40 mm |
| Net/Gross Weight | 0.75 kg / 1.0 kg |
| Installation | Desktop, Wall mounted |
| Certification & Warranty | |
| Lightning Protection |
4KV 8/20us, Protection level: IP30
|
| Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
|
| Warranty | 1 year, lifelong maintenance |
