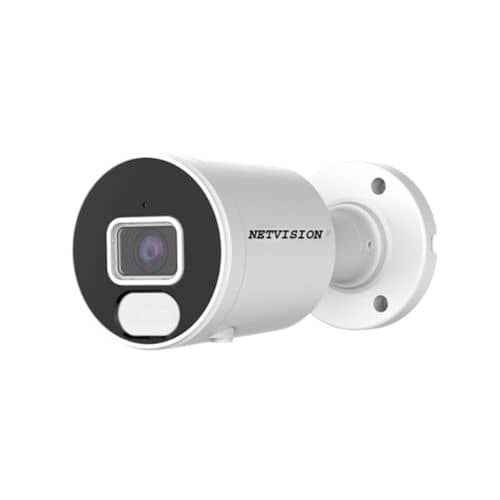

Features of the Netvision NV-IPC20AI 2MP Full-Color PoE Network Camera
- 2MP HD resolution
- Built-in Mic
- Built-in PoE
- IP67
- The default is smart dual light, the lights turn on when human detected and turn off when no human detected.
Description
| Model name | NV-IPC20AI |
| Video | |
| Imaging Device | 1/2.8″ |
| Effective Pixels | 2MP 1920(H)×1080(V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.0009lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON |
| Lens Type | |
| Focal Length (Zoom Ratio) | 3.6 mm |
| Max. Aperture Ratio | F No. 1.0 |
| Angular Field of View | Horizontal:85°, Vertical:46°, Diagonal: 100° |
| Min. Object Distance | 2m |
| Lens Type | Fixed(M12) |
| Operational | |
| IR LED | 1 |
| Warm Light | 2 |
| Red Blue Light | 2（1 Red&1 Blue） |
| IR Viewable Length | Up to 25m |
| Warm Light Viewable Length | Up to 20m |
| Type of complementary light | Default warm light, switchable infrared light |
| Motion Detection | Off/On (8 Level) |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3D DNR |
| Image Setting | Full Color Mode/Day Night Mode/Schedule |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Alarm | NA |
| Audio | Built-in microphone&Speaker |
| Custom Voice | Yes |
| Hardware Reset | Yes |
| Smart Feature | Face Recognition（FR） Human&Vehicle Detection（PD&VD）Perimeter Intrusion Detection（PID） Line Crossing Detection（LCD） Cross Counting（CC）Stationary Object Detection（SOD） Heat Map（HM）Crowd Density Detection（CD）Queue Length Detection（QD） license Plate Detection（LPD）Rare Sound Detection（RSD） |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution | Mainstream @60fps 1080P(1920×1080),960P(1280×960),720P(1280×720) Sub steam @30fps 720P(1280×720),VGA(640×480),QVGA(320×240) Mobile stream @30fps VGA(640×480), QVGA（320×240） |
| Video Quality Adjustment | 256Kbps ~ 8Mbps |
| Bitrate control method | CBR/VBR |
| IP | IPv6 |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Security | IP address filter; complicated password; Authenticated username and password |
| Application Programming Interface | ONVIF( Profile S/G/T) |
| Web Viewer | IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above |
| Environmental | |
| Operating Conditions | -35～+60°C/less than ≤ 95% RH |
| Ingress Protection | IP67 |
| Electrical | |
| Input Voltage / Current | D12V/POE(IEEE802.3af) |
| Power Consumption | DC12V ：max 5.5 W； POE（48V): max 6.8 W |
| Mechanical | |
| Material | Metal |
| Dimensions (HxWxD) | 152.3*70.1mm |
